Silicon Carbon Rod Series
Shanghai Donghai High-Temperature Silicon Carbon Rods · Core Component for Industrial High-Temp Heating
Product Overview
Carpent New Materials (Shanghai) Co., Ltd. distributes SiC heating elements manufactured by Tokai High Heat, a leading Japanese industrial heating element manufacturer renowned globally for the superior quality and reliable performance of its silicon carbide rods.
Silicon-carbon rods are non-metallic heating elements made primarily from high-purity silicon carbide. They feature uniform heat distribution, strong oxidation resistance, high-temperature tolerance, and long service life, making them essential consumables for industrial high-temperature kilns, heat-treatment furnaces, and laboratory high-temperature equipment.
Key Features
Uniform heat distribution
Uses high-purity SiC material with high density and uniform resistivity to ensure consistent temperature across the heating zone.
High thermal shock resistance
Offers excellent thermal shock resistance, enabling it to withstand rapid temperature fluctuations and minimizing damage caused by thermal stress.
High-temperature resistant
Maximum operating temperature up to 1600°C, meeting the needs of various high-temperature processes.
Long-lasting
Under normal use conditions, the service life can reach 2 to 3 times that of standard heating elements.
Product Model Specifications
Note: The models listed below are representative only; specific specifications can be customized to meet your operating conditions.

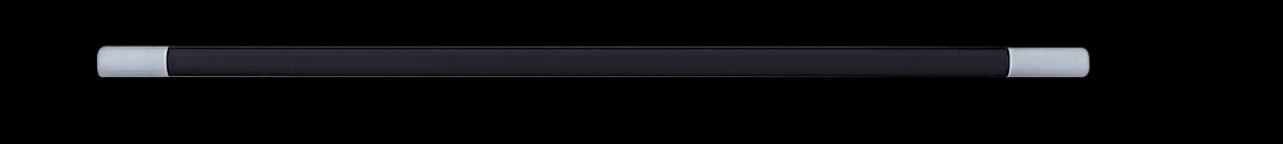

SHD/SLD
This series features high-density silicon carbide rods engineered for enhanced corrosion resistance. Building upon the standard SH/SL uniform-diameter design, these units offer upgraded materials to excel in demanding environments while maintaining identical electrical specifications and overall dimensions with SH and SL models. Ideal for use in corrosive media containing chlorine, fluorine, alkalis, lead, halogens, and more. Protective coatings can be selected based on specific operating conditions to further improve oxidation and corrosion resistance. Available Sizes: Ø12–50mm | Total Length ≥3000mm

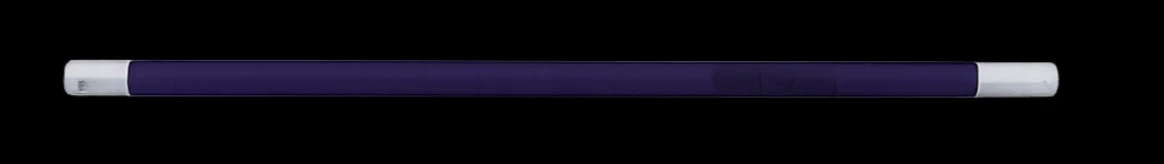

SG
SG-type silicon carbod rods feature a single-spiral groove design in the heating zone. This structure maintains the energy-saving performance of standard uniform-diameter rods while enabling operation at higher temperatures and delivering superior corrosion resistance under harsh conditions, making it ideal for long-term continuous high-temperature service. Available sizes: Ø14–45 mm | Hot-end length 1000mm | Total length 2000 mm

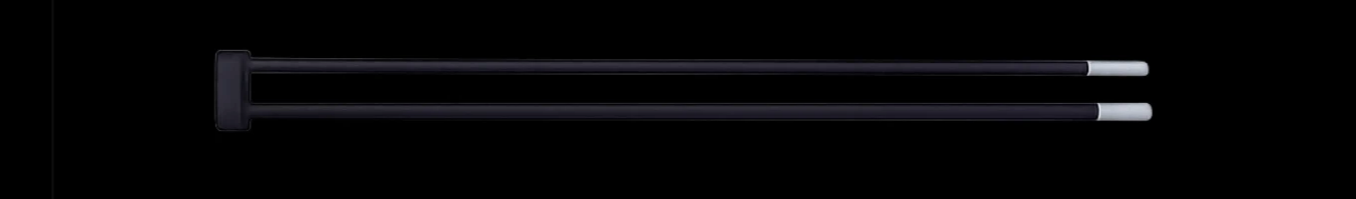

SUD
The SUD-type silicon carbide heating element consists of two identical, equal-diameter rods. Building on the SU series, it features optimized material performance and a unique structural design for superior energy efficiency, making it ideal for high-temperature industrial heating equipment. Available Sizes: Ø40mm | Hot Zone Length 1500mm | Total Length 1800mm

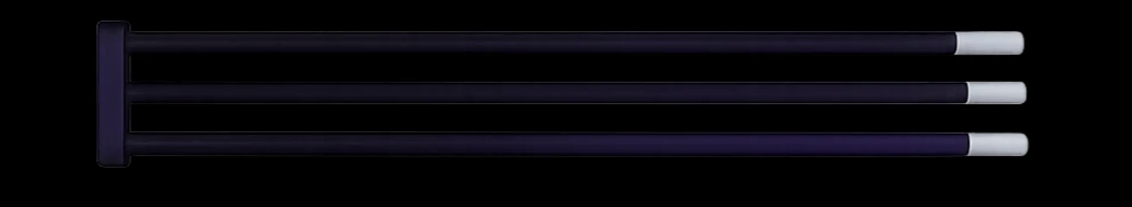

SW
The SW-type silicon carbide rod consists of three single-phase rods arranged in a W configuration, designed for use with three-phase power supplies. It is primarily used in high-temperature heating equipment such as float glass production lines and large industrial kilns.

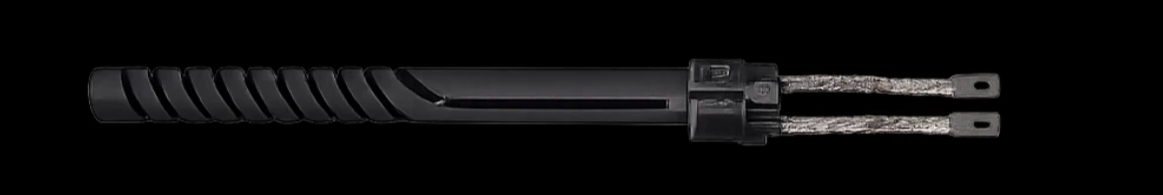

SGR
The SGR silicon carbide rod features a dual-spiral groove design, retaining only one cold end for external wiring. This simplifies installation and effectively saves space inside the furnace. With excellent high-temperature and corrosion resistance, the SG and SGR series are ideal for harsh environments and industrial kilns operating above 1400°C. Available sizes: Ø16–45mm | Hot-end length: 1000mm | Total length: 1500mm
Application Areas
Industrial High-Temperature Kiln
- Ceramic Sintering Furnace
- Glass Melting Furnace
- Powder Metallurgy Furnace
- Refractory Kiln
Heat Treatment Electric Furnace
- Metal Quenching Furnace
- Annealing Furnace
- Annealing Furnace
- Carburizing Furnace
High-Temperature Laboratory Equipment
- Lab Muffle Furnace
- Material Testing Furnace
- High-temperature furnace for research
Other apps
- Semiconductor Manufacturing Equipment
- Photovoltaic Material Processing
- Aerospace Material Handling
Why Choose Donghai High-temperature Silicon Carbon Rod
A century of technical expertise
Since its founding in 1949, Donghai High Temperature has specialized in the R&D and manufacturing of industrial heating elements for over 70 years.
Japanese imported quality
Manufactured in strict compliance with Japanese JIS standards; every batch undergoes factory inspection before shipment.
Advantages of Material Formulation
Formulated with high-purity SiC raw materials and an exclusive additive blend for stable, reliable performance.
Exquisite craftsmanship
Precise control of high-temperature sintering ensures consistent product density and strength.
Customized Service Capabilities
Custom non-standard solutions tailored to customer equipment dimensions and operating conditions.
Global Market Validation
Our products are exported to over 50 countries and regions worldwide, earning widespread market recognition.
